PRIME™ Infusion Systems
PRIME™ infusion systems applications range from single-operation moulding of carbon yacht masts, up to 80′ yacht hulls and wind turbine blades. PRIME™ epoxy infusion systems have been used successfully for over 20 years and today are at the forefront of the development of liquid epoxies for “under the bag” infusion processes, including:
- RIFT (resin infusion under flexible tooling)
- VARTM (vacuum assisted resin transfer moulding)
PRIME™ 37 Low Toxicity Epoxy Infusion System

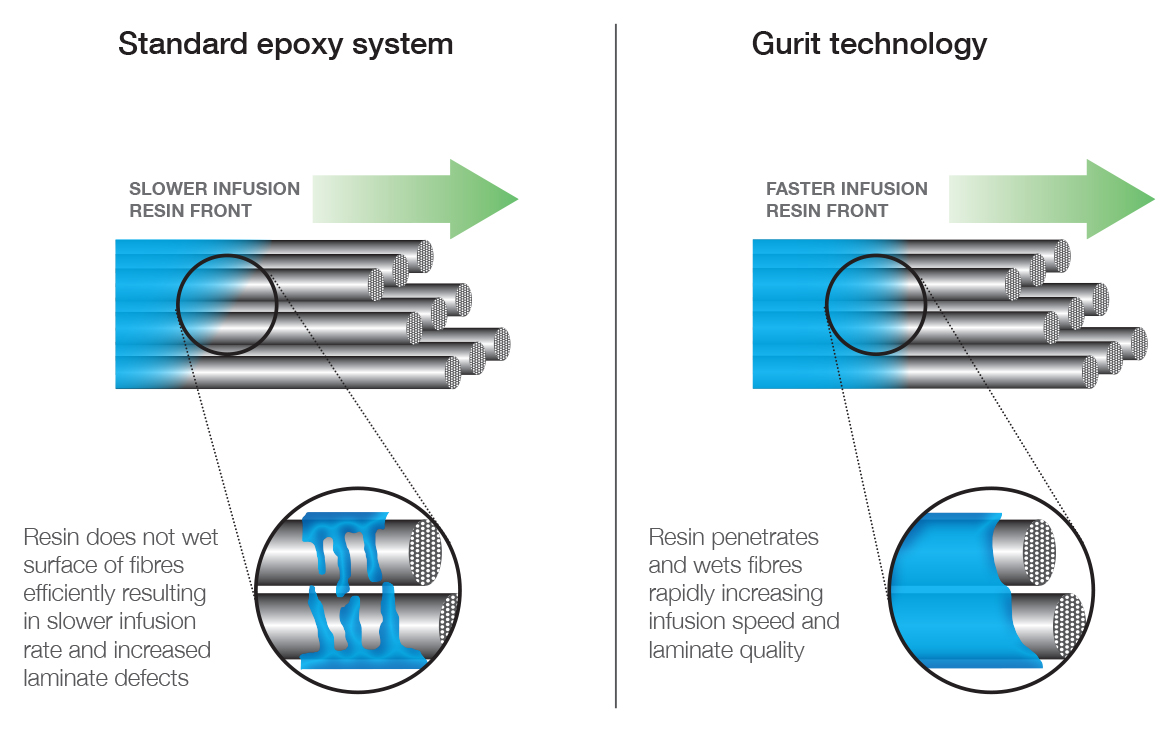

PRIME™ 37 has been developed to deliver exceptional laminate quality for a range of liquid infusion composite processes. Gurit’s unique fibre wetting technology reduces infusion time and improves laminate quality
The cure characteristics of PRIME™ 37 have also been optimised:
- Mixed viscosity remains lower for longer
- Faster through-cure, avoiding a low-strength “sugary” phase
- Improved exotherm control

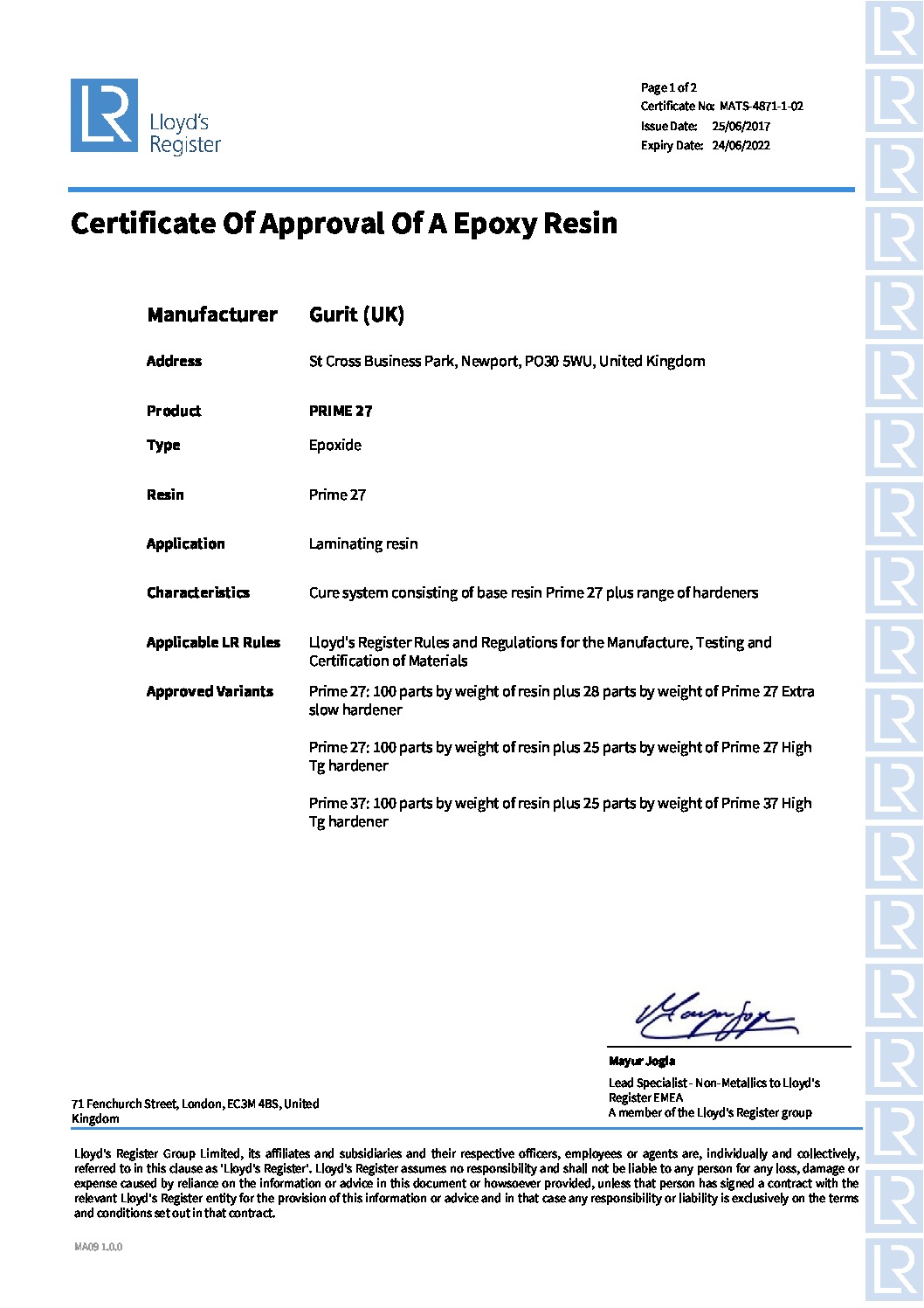

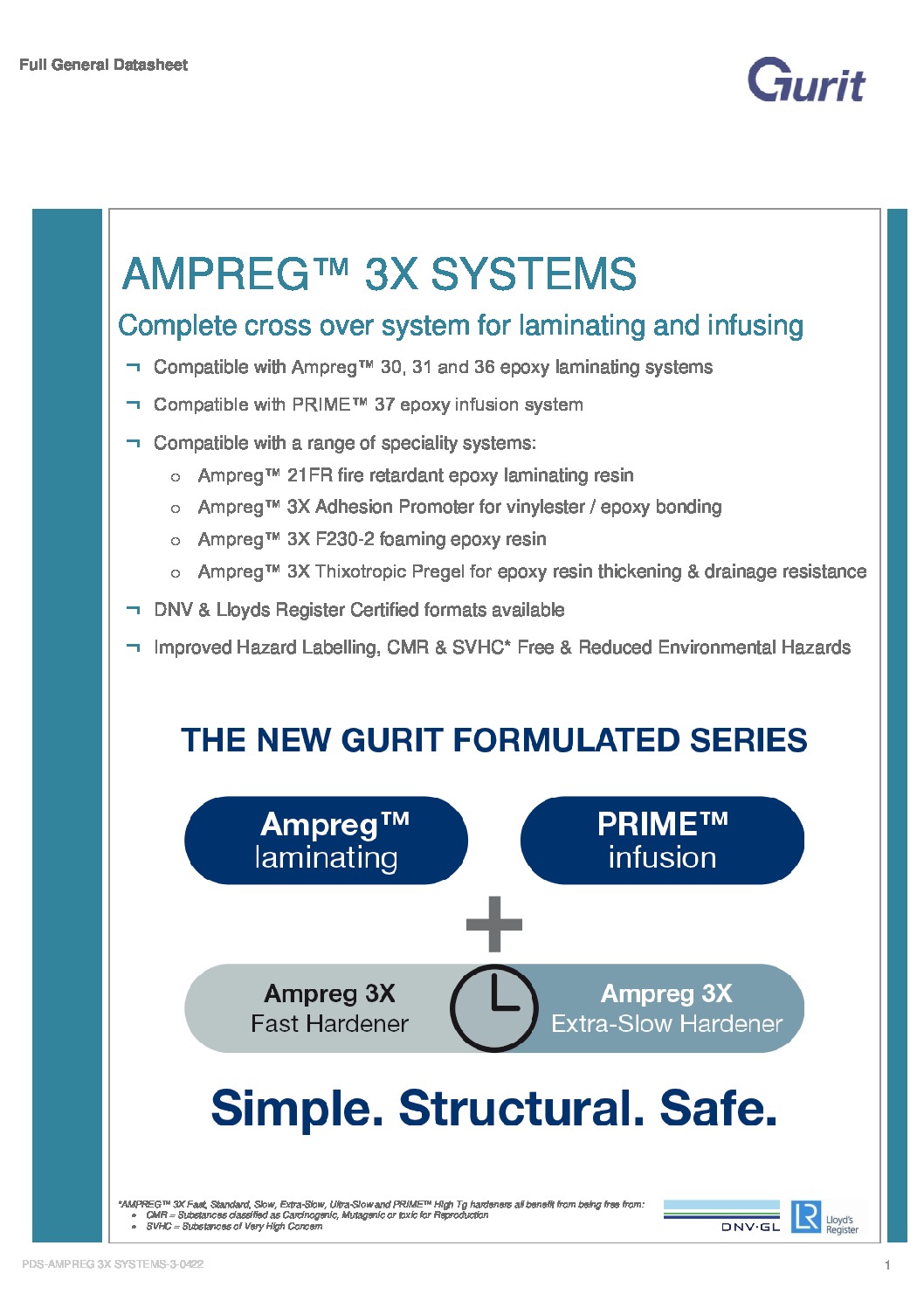

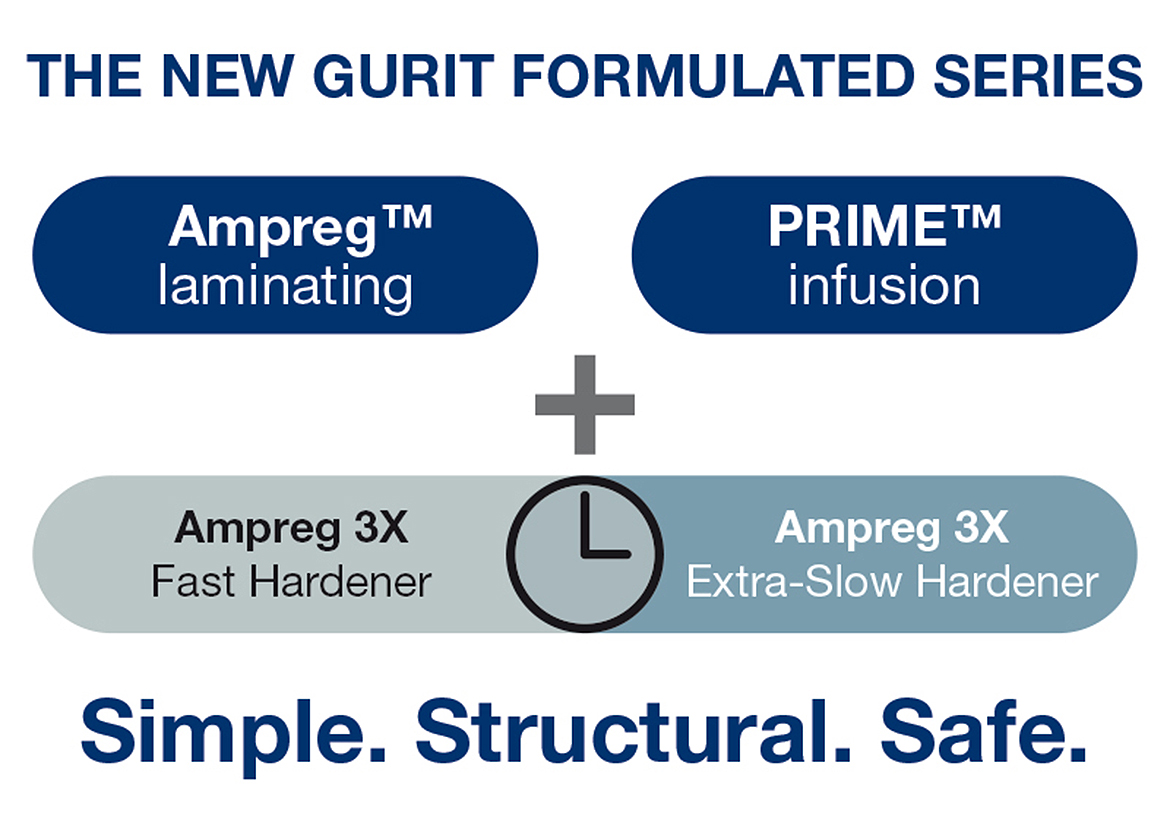

PRIME™ 37 is Lloyd’s certified and is produced with bio-based content as standard. By using the award winning Ampreg™ 3X low toxicity hardeners, PRIME™ 37 has market leading health and safety, and also allows customers to take advantage of the blend-able hardener speeds which can be tailored to suit each application.
PRODUCT NAME MIXED VISCOSITY 150G GELTIME MIX RATIO CURED TG CERTIFICATIONS PRIME™ 37 Ampreg™ 3X Fast Hardener 500 cP 1/2 hour 100:29 (parts by weight) Up to 75°C Lloyd's Register DNV (Pending) Ampreg™ 3X Slow Hardener 175 cP 4 hour Ampreg™ 3X Extra-slow Hardener 150 cP 10 1/2 hours PRIME™ High Tg Hardener 500 cP 5 hour 100:25 (parts by weight) Over 100°C DNV
Ampreg™ 3X Fast Hardener
100:29 (parts by weight)
Up to 75°C
Ampreg™ 3X Slow Hardener
Ampreg™ 3X Extra-slow Hardener
10 1/2 hours
PRIME™ High Tg Hardener
100:25 (parts by weight)
For further information, please see the related documents on the side bar or contact your customer support representative.

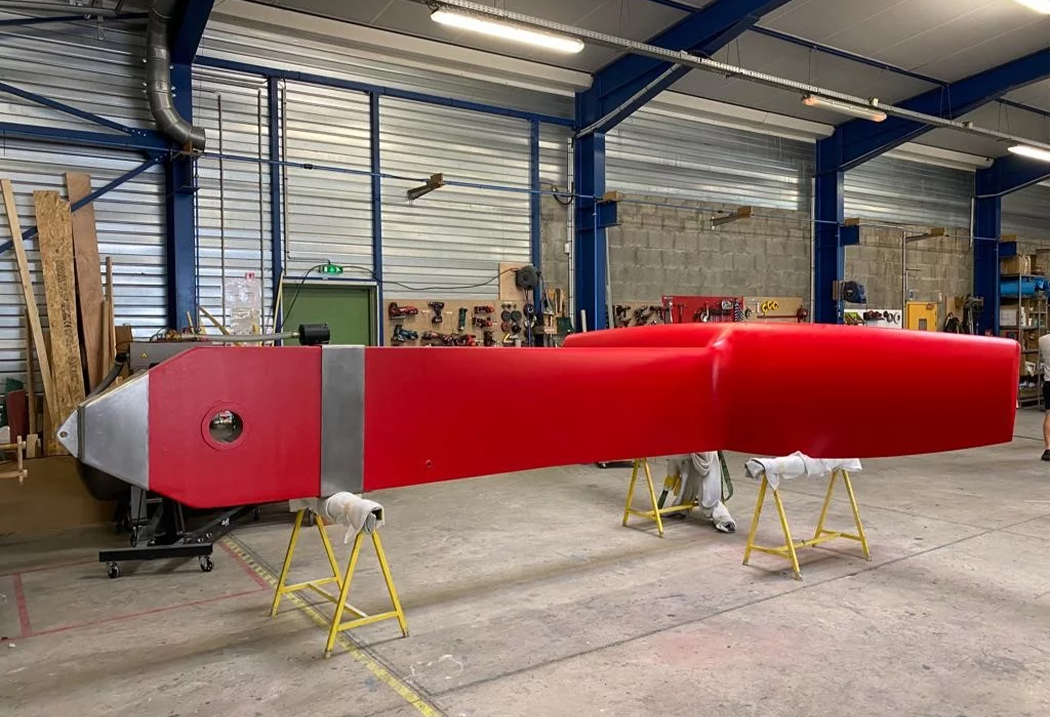

Magma Composites, with the help of Gurit’s distributor in France, Composites Distribution, used Gurit PRIME™ 37 Infusion system to make 40mm thick glass and carbon UD panels for a foiling project.
The Neo 570c project commenced in earnest in 2019. Working with longtime partner and Gurit distributor Resintex, the NEO team selected a full complement of Gurit products to achieve the weight savings needed, opting for a full prepreg carbon fiber hull, deck, structure and interior.

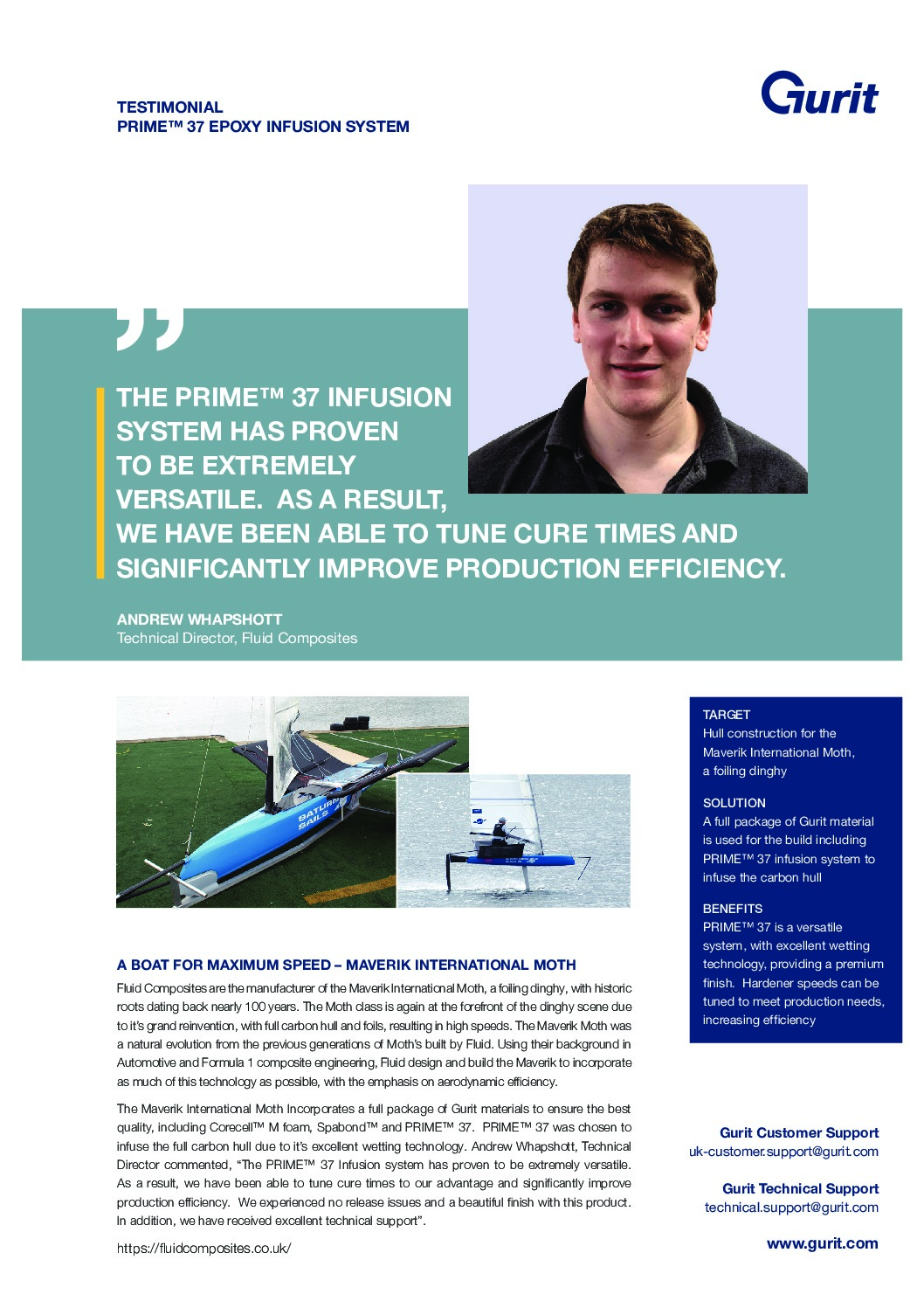

Fluid Composites are the manufacturer of the Maverik International Moth, a foiling dinghy, with historic roots dating back nearly 100 years. The Maverik International Moth Incorporates a full package of Gurit materials including Corecell™ M foam, Spabond™ and PRIME™ 37.

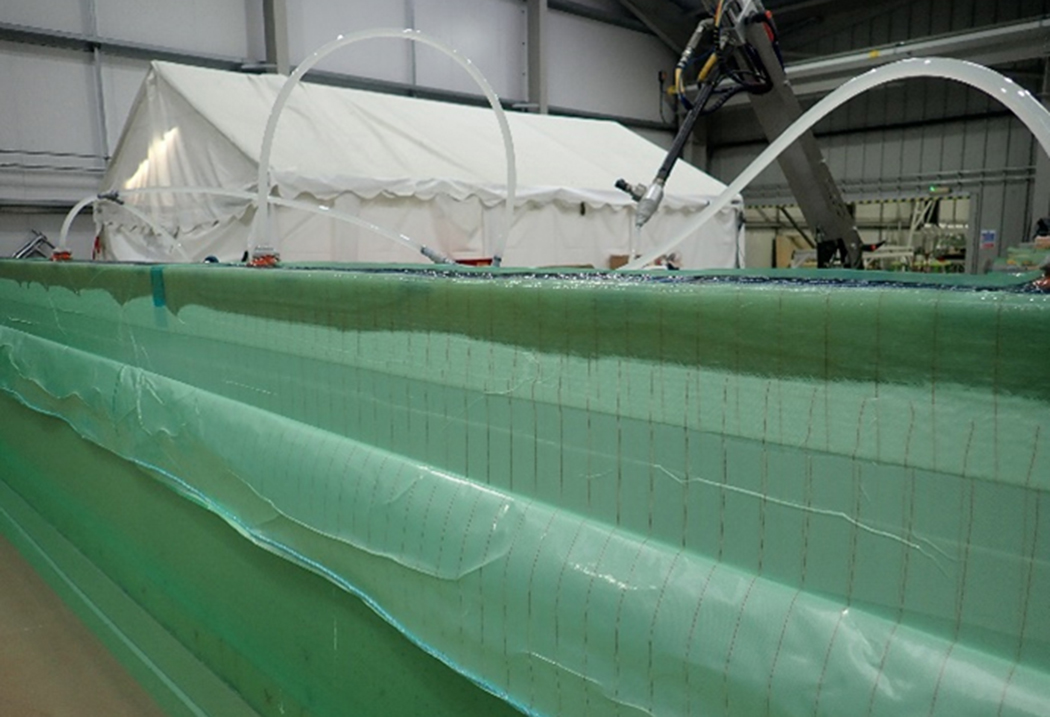

For large infusions involving relatively thick sections, being able to control the reactivity is key. When using Gurit’s new PRIME™ 37 system, Airborne were pleased to note that this system combined familiarity with improved performance and the ability to control their process to an exceptional degree. This greatly benefits them whether it be manufacturing a large composite gangway, or during RTM processes involving very thick laminates.
The Southern Wind and Gurit partnership including full package solution of materials, structural engineering and technical support, has delivered some amazing results: Smart custom performance sailing yachts which hit the sweet spot between customization and standardization, design and reliability and between performance and comfort.
